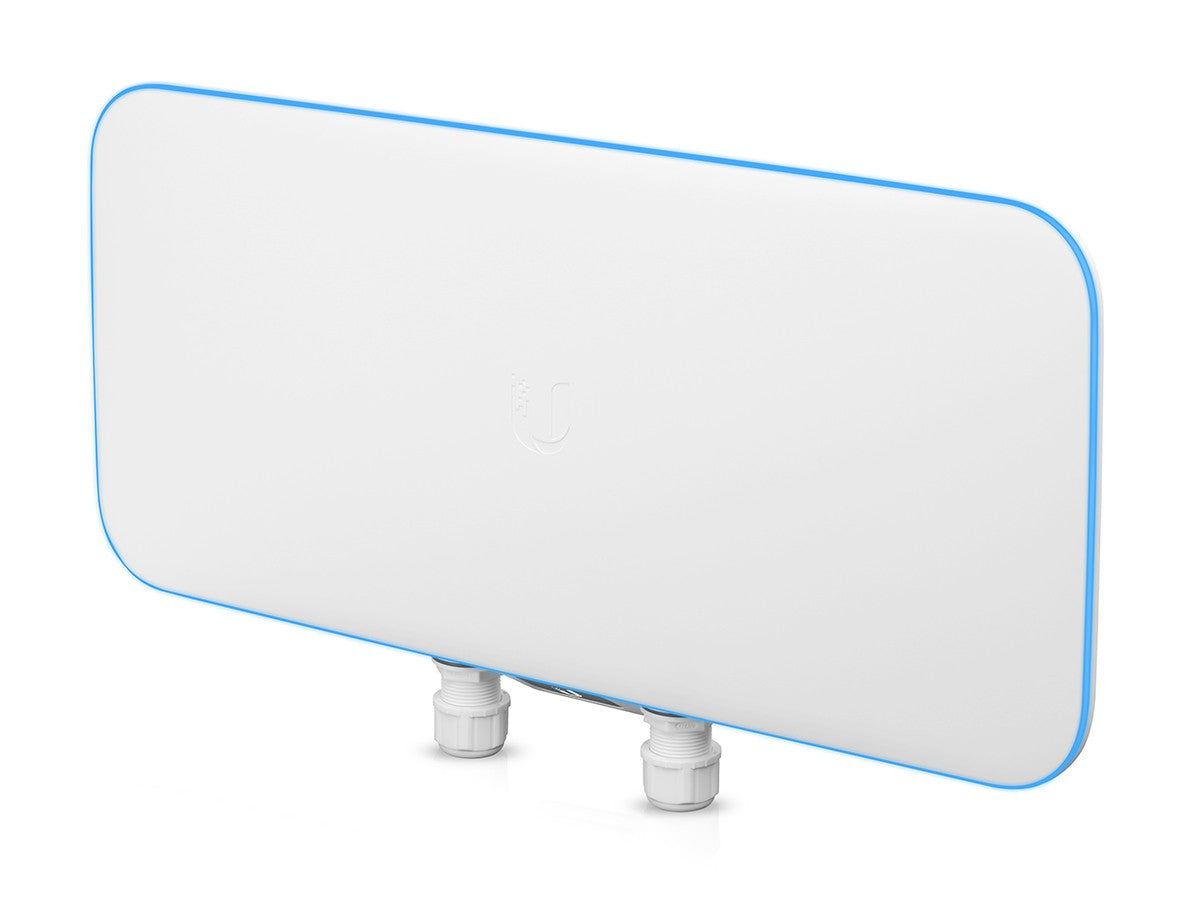

![[UWB-XG] Ubiquiti Quad-Radio 802.11ac Wave 2 Access Point with Dedicated Security & Beamforming Antenna](http://store.daanish.com/cdn/shop/files/1_58_12_large.jpg?v=1713270209 "[UWB-XG] Ubiquiti Quad-Radio 802.11ac Wave 2 Access Point with Dedicated Security & Beamforming Antenna")
![[UWB-XG] Ubiquiti Quad-Radio 802.11ac Wave 2 Access Point with Dedicated Security & Beamforming Antenna](http://store.daanish.com/cdn/shop/files/1_58_12_1200x.jpg?v=1713270209)
Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.
WiFi 5 (5 GHz only)
12 spatial streams
465+ m² (5,000+ ft²) open space coverage
1,500+ connected devices
Powered using PoE++
(1) GbE and (1) 10 GbE uplink
Versatile wall and pole mounting
Phased array antenna system with software-adjustable coverage (50° or 90°)
Weatherproof (outdoor exposed)
Installation Guide:
Technical Specifications:
OVERVIEW |
|
| Dimensions | 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7") |
| WiFi Standard | WIFI 5 |
| Spatial Streams | 12 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 1500+ |
| Uplink | 10 GbE |
| Mounting | Wall, Pole (Mounts Included), VESA (Optional) |
| Weatherproofing | IP67 |
| Power Method | PoE++ |
PERFORMANCE |
|
|
MIMO
5 GHz
|
Low Band: 4 x 4 (DL MU-MIMO)
Vertical Band: 4 x 4 (DL MU-MIMO)
High Band: 4 x 4 (DL MU-MIMO)
|
|
Max. Data Rate
5 GHz
|
Low Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80) |
|
Antenna Gain
5 GHz
|
Directional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90° |
|
Max. TX Power
5 GHz
|
25 dBm |
|
Max. BSSIDs
|
8 per Radio |
|
Supported Data Rates
802.11ac (WiFi 5)
802.11n
|
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40) |
|
|
FEATURES |
|
Wireless Meshing
|
Yes |
|
Band Steering
|
Yes |
|
802.11v BSS Transition Management
|
Yes |
|
802.11r Fast Roaming
|
Yes |
|
802.11k Radio Resource Management (RRM)
|
Yes |
|
Advanced Radio Management
|
Yes |
|
Passpoint (Hotspot 2.0)
|
Yes |
|
Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
|
Yes Yes Yes Yes Yes Yes |
|
Client Device Isolation
|
Yes |
|
WiFi Schedules
|
Yes |
|
RADIUS over TLS (RadSec)
|
Yes |
|
Dynamic RADIUS-assigned VLAN
|
Yes |
|
|
HARDWARE |
|
Max. Power Consumption
|
31W |
|
Includes PoE Adapter
|
Yes |
|
Supported Voltage Range
|
44—57V DC |
|
Networking Interface
|
(1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port |
|
Weight
|
3.2 kg (7.1 lb) |
|
Pole Mount Diameter
|
1~3" (25~76 mm) |
|
Antennas
|
(1) Integrated dual-mode antenna array |
|
Management
|
Ethernet Bluetooth |
|
Enclosure Material
|
Polycarbonate, aluminum alloy |
|
LEDs
System
|
R/G/B |
|
Channel Bandwidth
|
HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz) |
|
NDAA Compliant
|
Yes |
|
Certifications
|
CE, FCC, IC |
|
Operating Frequency
|
US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5670 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5670 MHz |
|
Ambient Operating Temperature
|
-40 to 70° C (-40 to 158° F) |
|
Ambient Operating Humidity
|
5 to 95% noncondensing |
|
|
SOFTWARE |
|
Application Requirements
UniFi Network
|
Version 6.0.45 and later |
