MECHNICAL |
|
Dimensions |
Without mount: Ø82 x 88.8 mm (Ø3.2 x 3.5") With mount: Ø82 x 153 mm (Ø3.2 x 6") |
|
IR Night Vision |
30 m (98 ft) | |
Face Recognition |
YES |
|
License Plate Recognition |
YES | |
Smart Detections (People, Vehicles, Animals) |
YES | |
Resolution |
4K | |
Field of View |
H: 109.9°, V: 56.7°, D: 134.1° | |
Audio |
|
|
Weatherproofing |
IP66 | |
Tamper Resistance |
IK04 | |

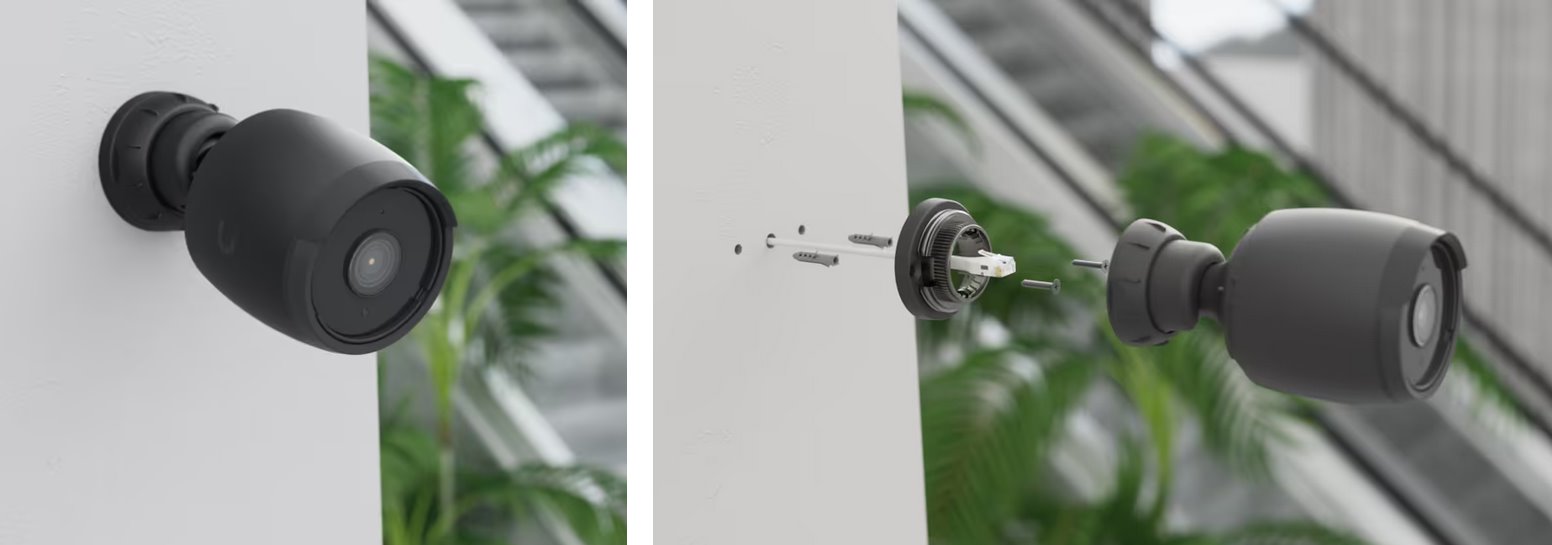

Mounting |
Wall, ceiling, pole mount (Included) Junction box, angled base (Optional) |
|
Performance |
||
Networking Interface | 10/100 MbE RJ45 por | |
Video- Img setting Max. Frame Rate Resolution |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR 30 FPS 8MP 3840 x 2160 (16:9) |
|
Optics- Sensor Lens Night Mode |
1/1.8” 8MP Fixed focal length Built-in IR LED illumination and IR cut filter |
|
Hardware |
||
Max. Power Consumption | 9.9W | |
Supported Voltage Range | 37–57V DC | |
Power Method | PoE | |
Processor | Quad-core Arm® Cortex®-A53 based chip | |

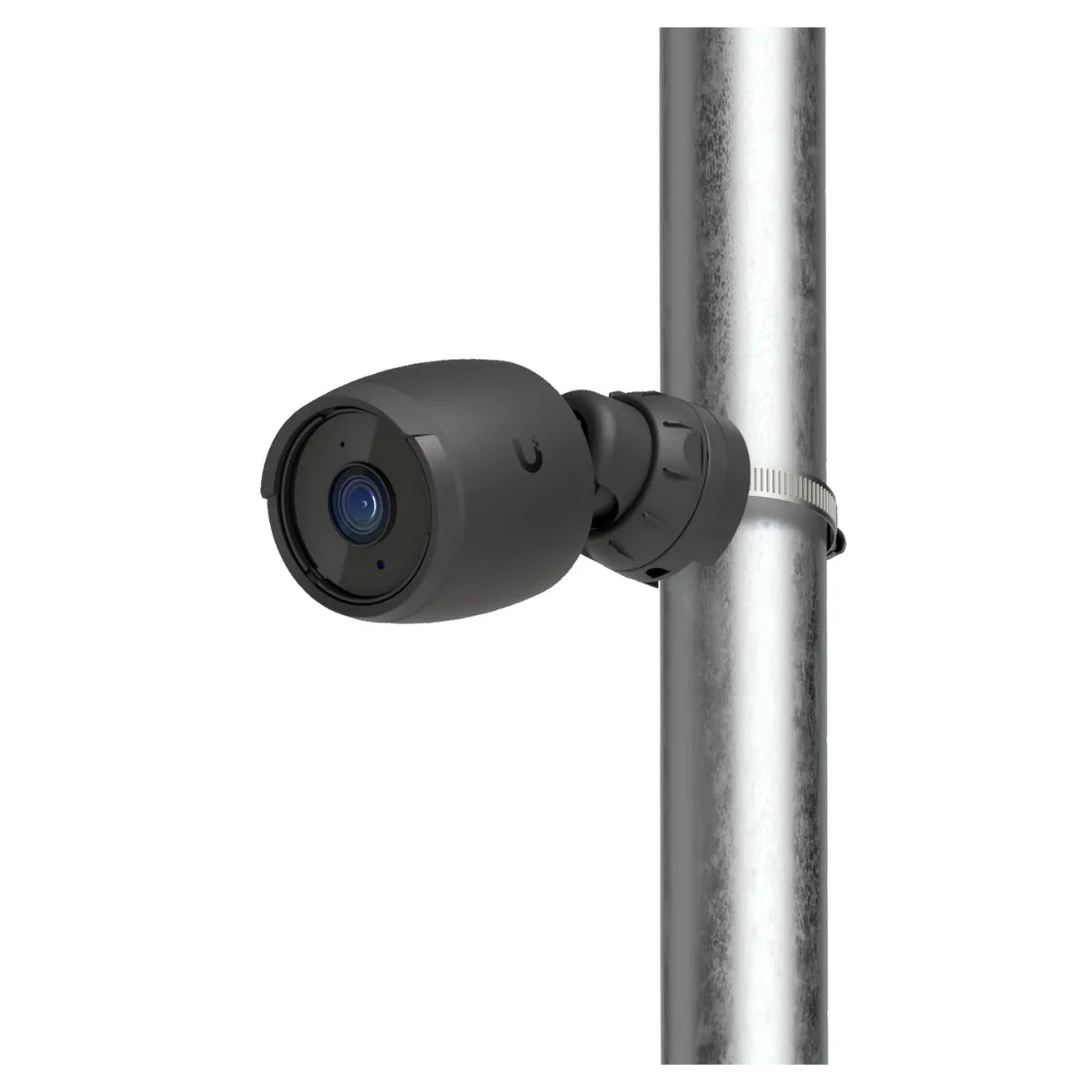

Pole Mount Diameter | 1.5–2" (38–50 mm) | |
Weight | Without mount: 587 g (1.3 lb) With mount: 737 g (1.6 lb) | |
Enclosure Material | Polycarbonate, aluminum alloy | |
Mount Material | Wall mount: aluminum alloy, polycarbonate Pole mount: aluminum alloy | |
Button | (1) Factory-reset | |
Ambient Operating Temperature | -20 to 50° C (-4 to 122° F) | |
Ambient Operating Humidity | 0 to 90% noncondensing | |
NDAA Compliant | Yes | |
Certifications | CE, FCC, IC |
