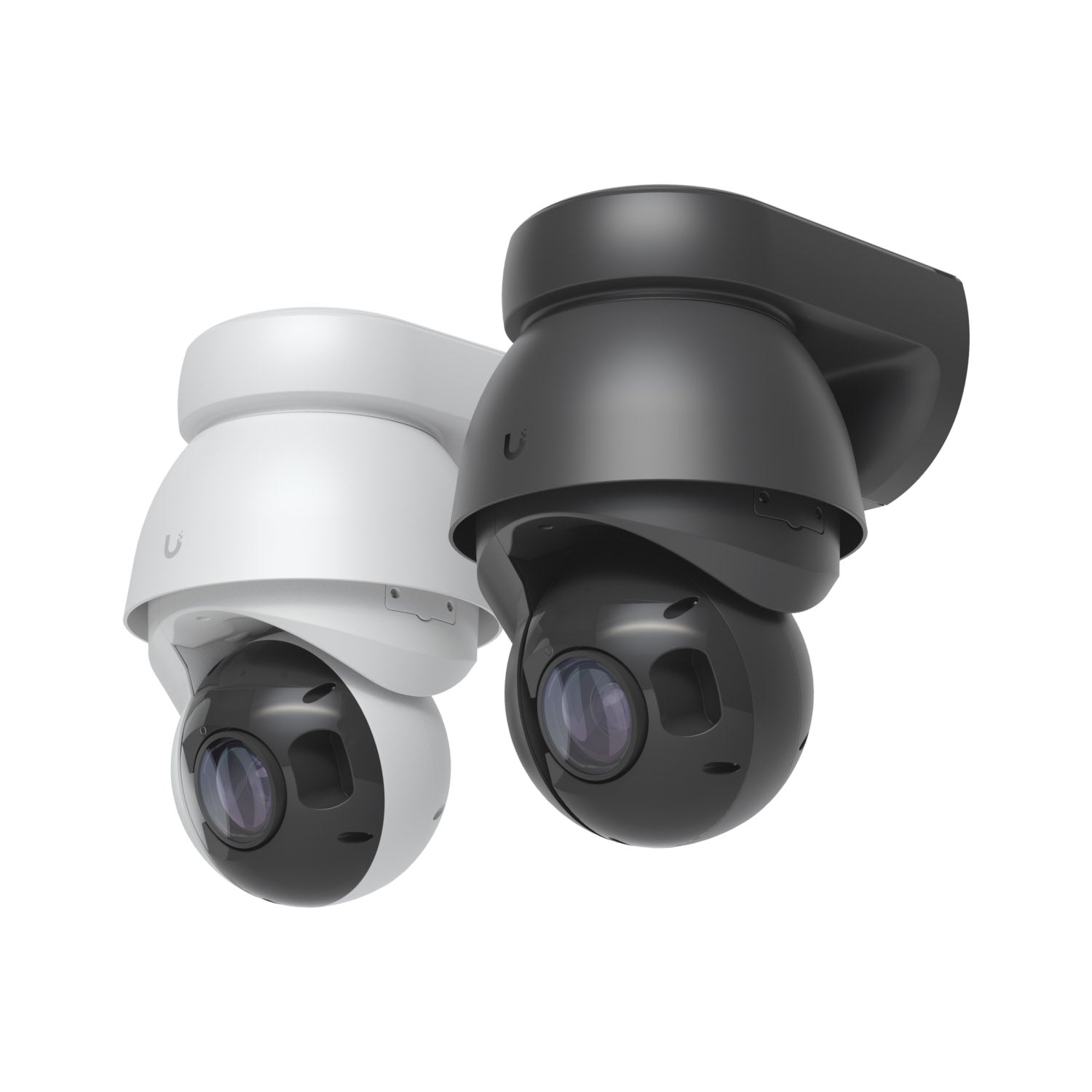

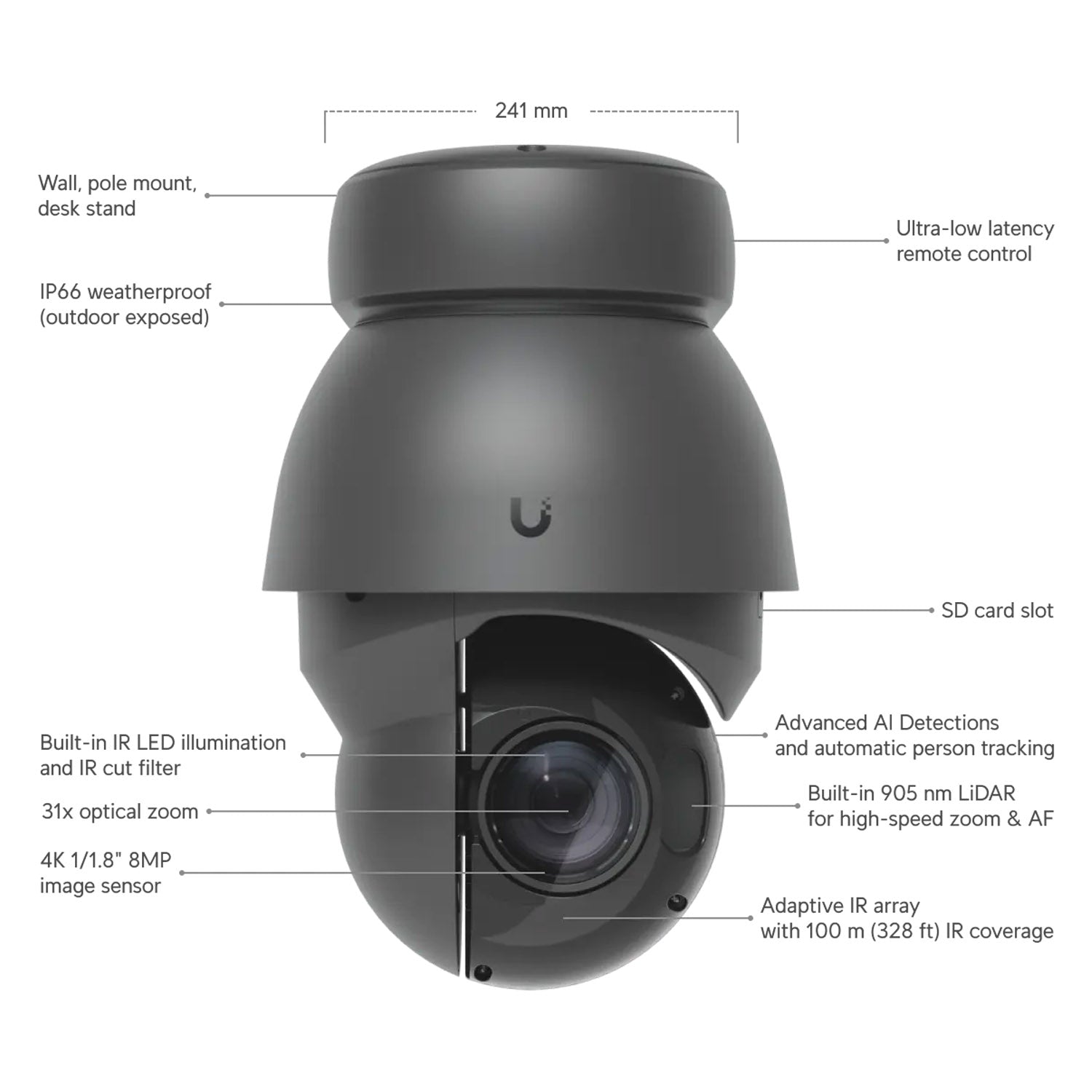

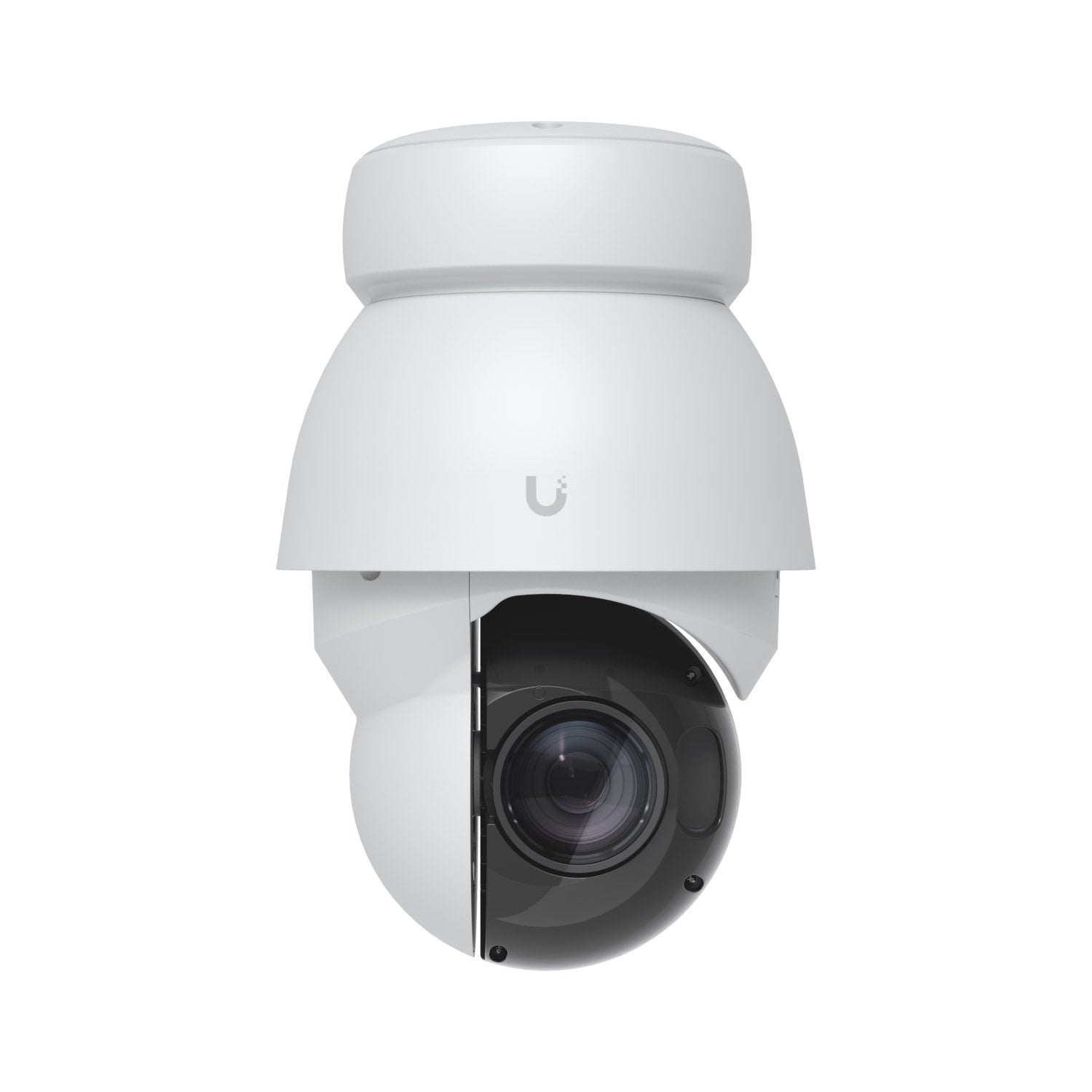

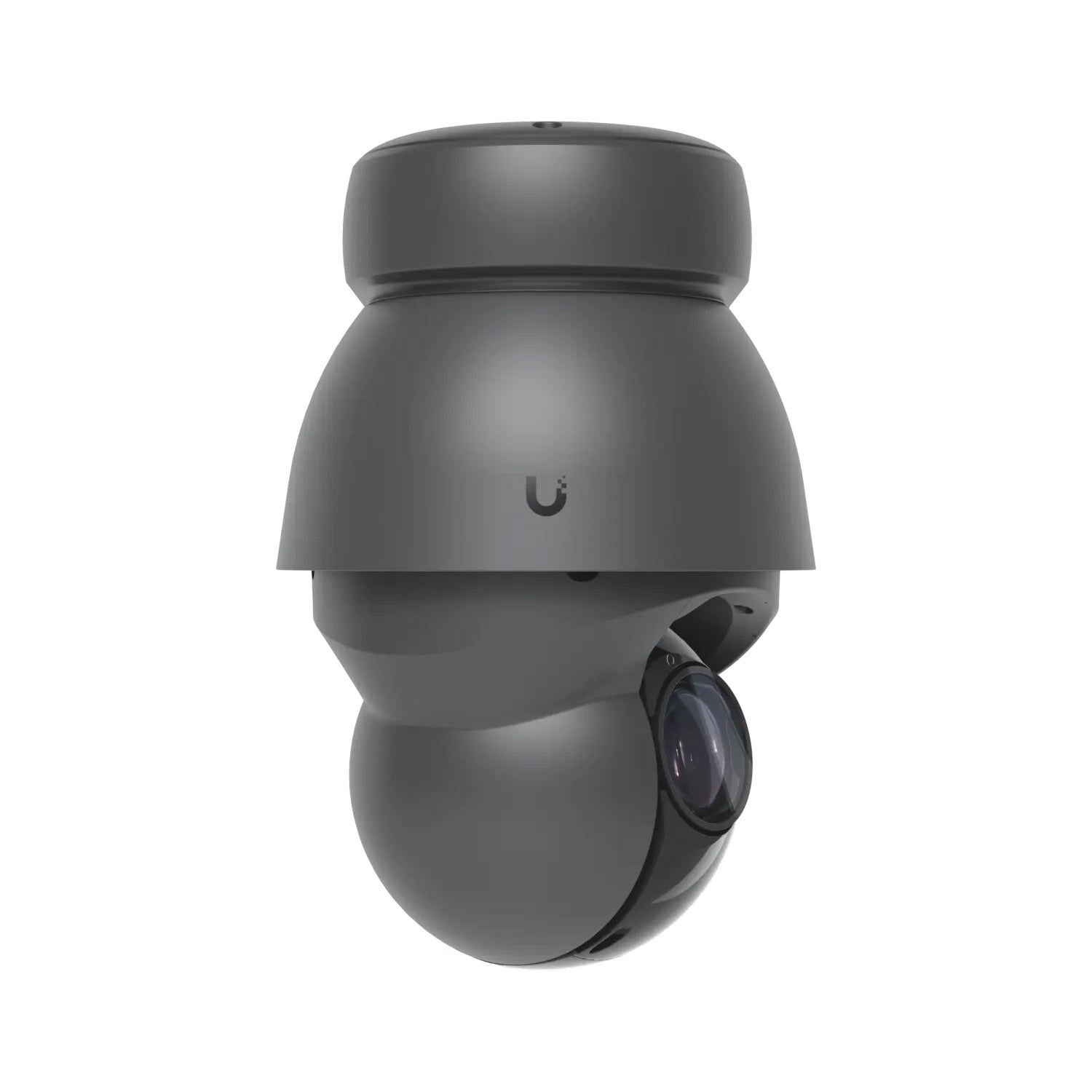

Industrial-grade 4K PTZ camera with enhanced AI capabilities, 31× optical zoom, adaptive IR LED night vision, and LiDAR technology for faster autofocus.
| Overview | |
| Dimensions (Without mount) | Ø241 x 349 mm (Ø9.5 x 13.7") |
| Dimensions (With mount) | 372 x 241 x 299 mm (14.7 x 9.5 x 11.8") |
| Resolution (Marketing) | 4K |
| Zoom Mode | **31x Optical** |
| **Lightning Zoom** | Coming Soon |
| IR Night Vision | **100 m (328 ft)** |
| Pan-Tilt Range (Pan) | 360° (Endless) |
| Pan-Tilt Range (Tilt) | 120° |
| Field of View (Wide) | H: 59°, V: 34.1°, D: 67.1° |
| Field of View (Tele) | H: 1.98°, V: 1.12°, D: 2.27° |
| Smart Detections | People, Vehicles, Animals |
| Face/License Plate Recognition | Yes |
| Weatherproofing | IP66 |

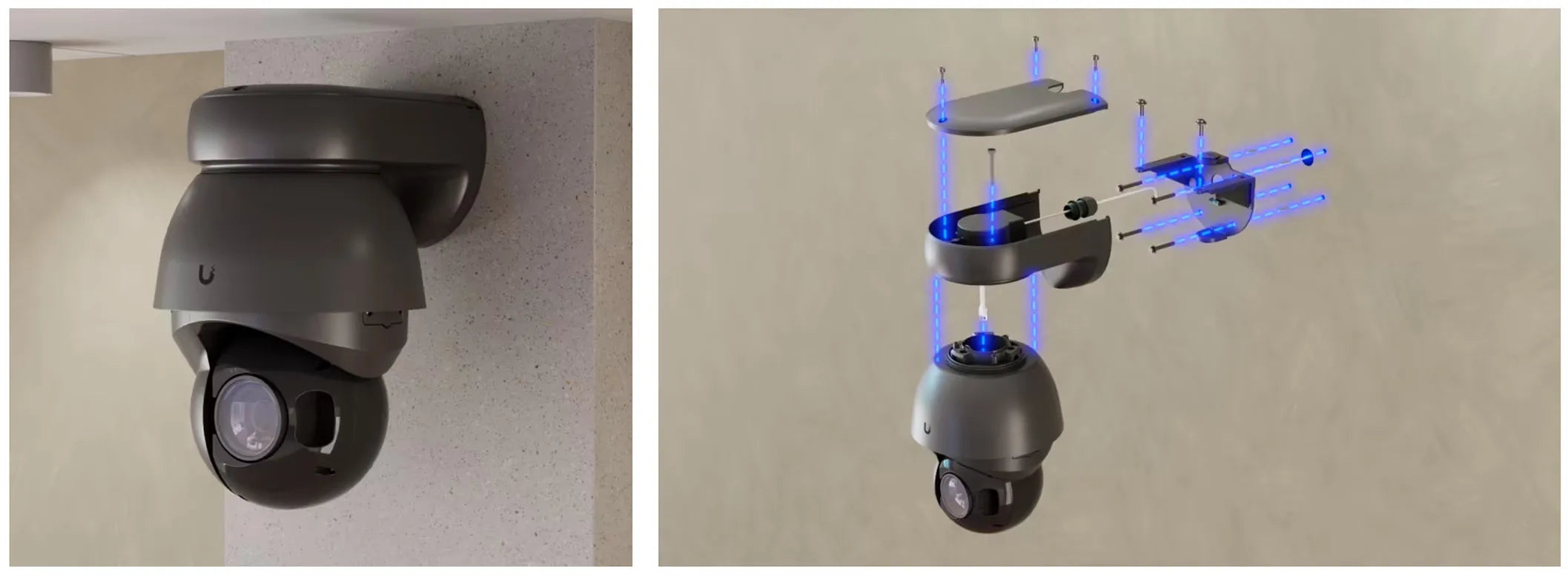

| Mounting (Included) | Wall, Pole mount, Desk stand |
| UniFi Application Suite | Protect (Yes) |
| Performance & Video | |
| Networking Interface | GbE RJ45 port |
| Max. Frame Rate | 30 FPS |
| Resolution (Native) | 8MP **3840 x 2160** (16:9) |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Optics | |
| Sensor | 1/1.8" 8MP |
| Lens | F 6.91-214.64 mm; ƒ/1.36-ƒ/4.6 |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware & Power | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Power Method | **PoE++** |
| Max. Power Consumption | **51W** |
| Supported Voltage Range | 42.5—57V DC |
| Weight (Camera Only) | 5.5 kg (12.1 lb) |
| Pole Mount Diameter | 2–4" (50–100 mm) / 4.5–6" (115–150 mm) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Expansion Slot | MicroSD card |
| Button | (1) Factory-reset |
| Environmental & Compliance | |
| Ambient Operating Temperature | **-40 to 50º C (-40 to 122º F)** |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
