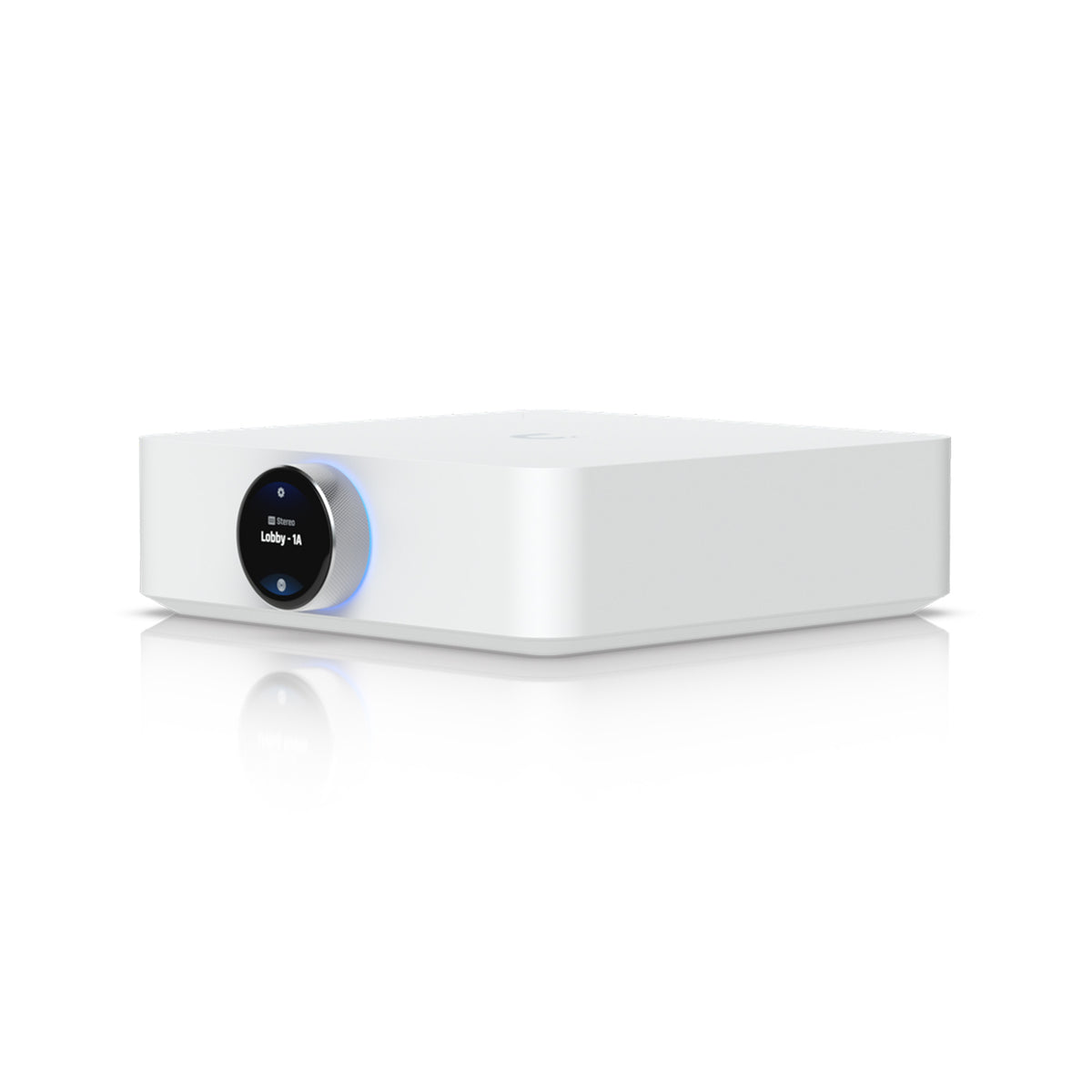

Provide streaming music to a pair of passive speakers with the Ubiquiti UPL-Amp Stereo Integrated Amplifier in white. The UPL-Amp features a modern and compact design, built-in Wi-Fi for streaming and control, and the ability to group up to 32 amps on a single network, making this well suited to multi-zone multi-room audio in business and home environments.
Β

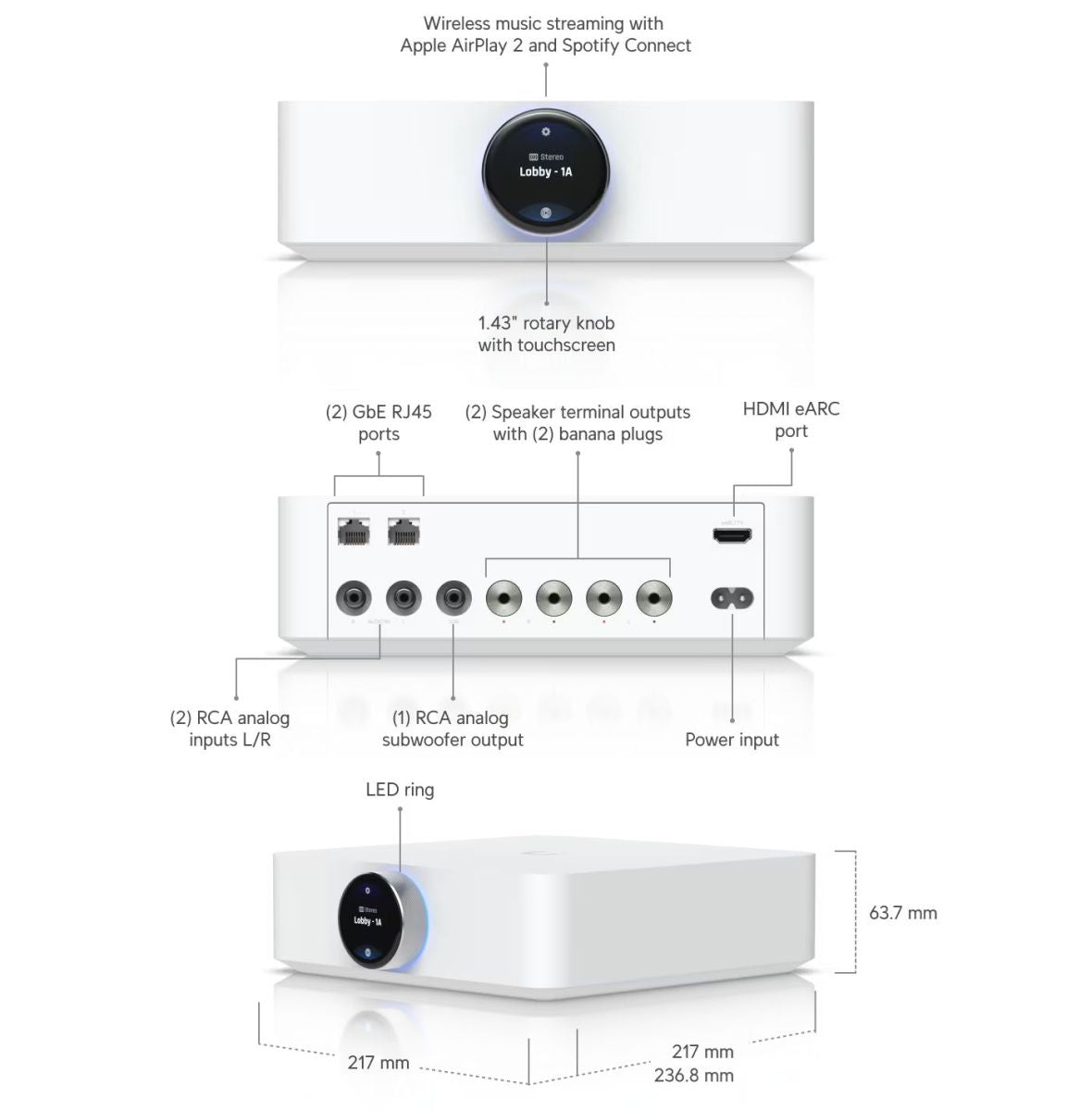

Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.
Low-latency wireless audio streaming with Apple AirPlay and Spotify Connect
130 watts per channel at 8 ohms

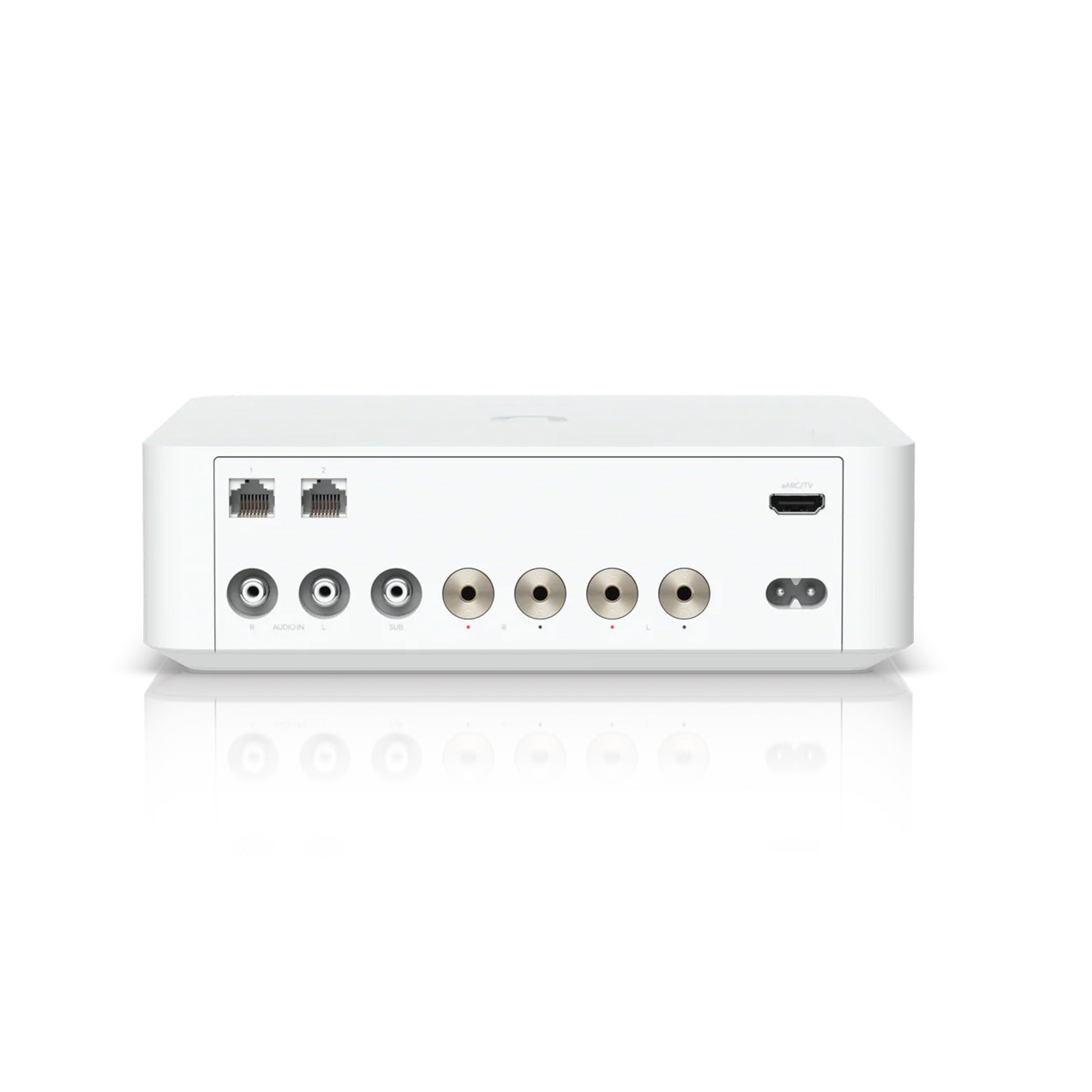

(2) speaker terminal outputs with (2) custom-designed banana plugs included
(1) RCA analog subwoofer output
(2) RCA analog inputs for left and right channels
(1) HDMI eARC input with immersive spatial sound powered by Dolby Atmos
1.43" rotary knob with touchscreen
Effortless setup, management, and group control with the UniFi Play mobile app
Installation Guide
Β
Technical Specifications :Β
Β
Mechanical |
|
| Dimensions | With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Chassis: Polycarbonate Knob: Aluminum |
| Mounting | Compact Desktop |
| Available Colors | White |
Audio |
|
| Per Channel Power (Continuous power) | 130 W, 8 Ξ©, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ξ©, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) |
| Amplifier Class | Class D |
| Output | Mono / Stereo sound |
| Surround Format |
Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
|
| Zone | Up to 32 PowerAmps |
| Audio Input |
(1) HDMI eARC input (2) RCA analog inputs L/R |
| Audio Output |
(1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs |
| Streaming | AirPlay, Spotify Connect, Soundtrack Your Brand |
Hardware |
|
| Networking Interface | (2) GbE RJ45 ports |
| WiFi Standards | 802.11 a/b/g/n/ac |
| Connectivity | WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz |
|
Power method |
1) Universal AC input, 100β240V AC, 2.5A Max., 50/60 Hz |
| Max. Power Consumption | 17W |
| LCM Display | 1.43" rotary knob with touchscreen |
| Button | (1) Factory-reset |
| Ambient Operating Temperature | -5 to 40Β° C (23 to 104Β° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
Software |
|
| UniFi Application Suite | UniFi Play iOSβ’ and Androidβ’: Version 1.0.0 and later |
