11

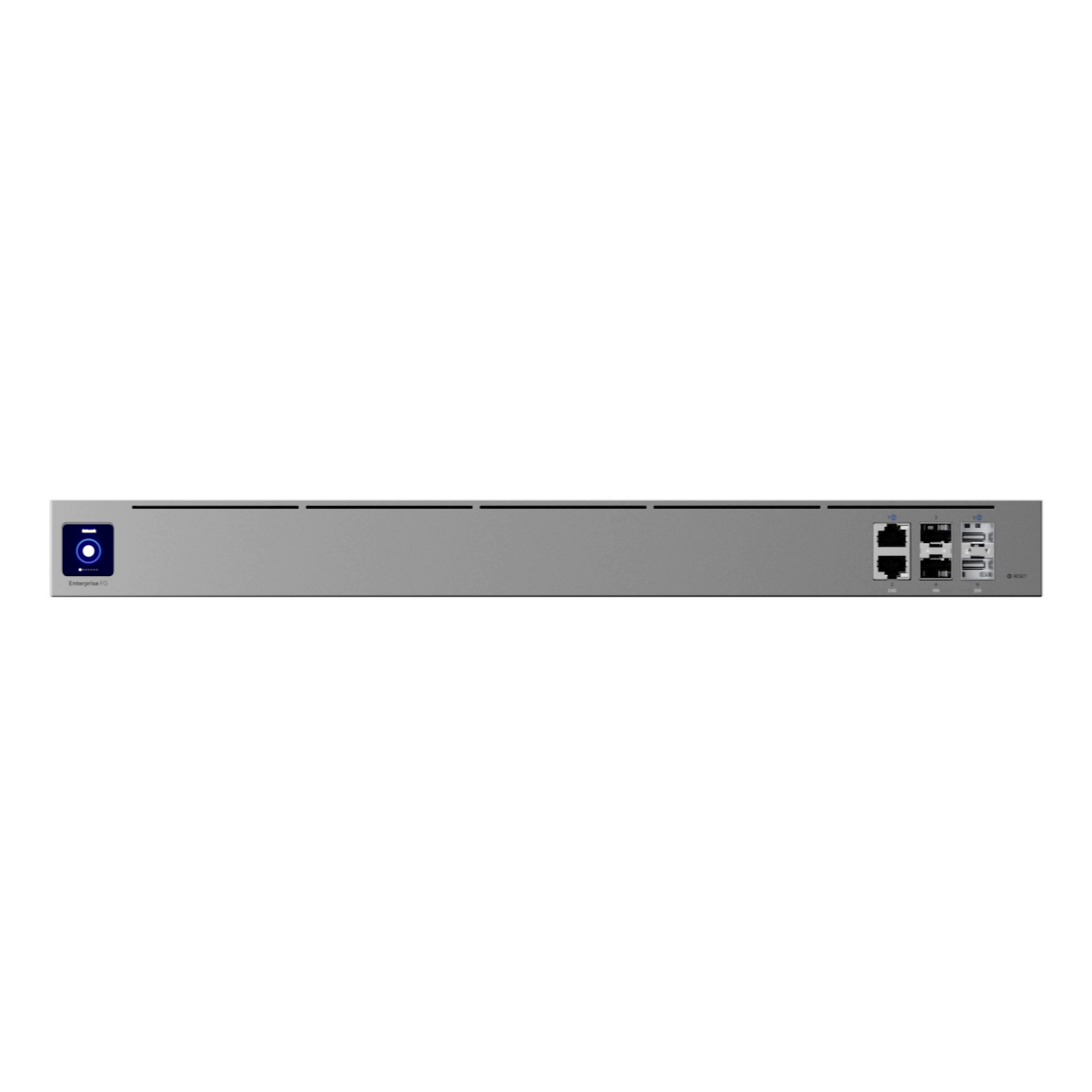

[EFG] Ubiquiti Enterprise Fortress Gateway

[EFG] Ubiquiti Enterprise Fortress Gateway

25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability. Runs UniFi Network for full-stack network management Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)* 12.5 Gbps routing with IDS/IPS License-free, real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption) (2) 25G SFP28**, (2) 10G SFP+**, and (2) 2.5 GbE RJ45 ports (two interfaces remappable to WAN) (2) included hot-swap PSUs for power redundancy 1.3" touchscreen *Requires UniFi OS 4.0 and later. Must be paired with another EFG.**Pair with an official SFP28 Module, SFP+ Module, or...
Vendor: Daanish Technologies Inc.
Availability: Out Of Stock
Product Type: switch
$1,999.00
$1,999.00
Subtotal: $1,999.00
[EFG] Ubiquiti Enterprise Fortress Gateway

[EFG] Ubiquiti Enterprise Fortress Gateway

$1,999.00
[EFG] Ubiquiti Enterprise Fortress Gateway

[EFG] Ubiquiti Enterprise Fortress Gateway

$1,999.00
Description & Technical Specification
25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.

Runs UniFi Network for full-stack network management

Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)*

12.5 Gbps routing with IDS/IPS

License-free, real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption)

(2) 25G SFP28**, (2) 10G SFP+**, and (2) 2.5 GbE RJ45 ports (two interfaces remappable to WAN)

(2) included hot-swap PSUs for power redundancy

1.3" touchscreen

*Requires UniFi OS 4.0 and later. Must be paired with another EFG.
**Pair with an official SFP28 Module, SFP+ Module, or SFP+ to RJ45 Adapter for the best experience.

Note. Important Notice

Before proceeding, please confirm that you have met with our Daanish Team to discuss the terms of the Enterprise Partnership Program.



Installation Guide:

See Documents

Technical Specifications:


Overview
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Network Support Yes
Managed UniFi Devices 500+
Simultaneous Users 5,000+
Max WAN Ports 5
Default WAN Ports (1) 25G SFP28, (1) 2.5GbE RJ45
2.5 GbE RJ45 Ports 2 (2.5G/1G/100M/10M)
10G SFP+ Ports 2 (10G/1G)
25G SFP28 Ports 2 (25G/10G/1G)
IDS/IPS Throughput 12.5 Gbps
SSL/TLS Inspection Sessions 10,000
Concurrent Sessions 1 Million
New Sessions per Second 71,000
Form Factor Rack mount (1U)
Redundancy Shadow Mode (VRRP), (2) Hot-swappable PSUs

Security
Stateful Firewall Yes
Layer 7 Firewall Yes
SSL Inspection & URL Filtering Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Yes
Content Filtering Yes
IPS/IDS Yes
Ad Blocking Yes
IDS/IPS Signatures 95,000+ (with CyberSecure Enterprise)
Traffic Segmentation VLAN/Subnet-based

VPN & SD-WAN
SD-WAN License-Free
Site-to-Site VPN (Site Magic) Yes
IPsec Yes
OpenVPN Yes
WireGuard Yes
L2TP Yes
Identity VPN One-Click VPN, Yes
Teleport VPN Yes
One-Click VPN Throughput 1.2 Gbps
Teleport Throughput 1.2 Gbps
WireGuard Throughput 1.2 Gbps
OpenVPN Throughput 210 Mbps
L2TP Throughput 280 Mbps
Site-to-Site (Site Magic) Throughput 1.1 Gbps
Site-to-Site (OpenVPN) 120 Mbps
Site-to-Site (IPsec) 580 Mbps
VPN Client WireGuard 980 Mbps
VPN Client OpenVPN 180 Mbps

Networking
Multi-WAN Load Balancing Yes
High Availability (VRRP) Yes
Dynamic Routing OSPF, BGP
Advanced QoS Yes
mDNS Yes
Advanced NAT Yes
Integrated RADIUS + RadSec Yes
LTE Failover Yes
Internet Quality Reporting Yes
Policy-based Routing Yes
DHCP Server Customizable
IPv6 ISP Support Yes
IGMP Proxy Yes

Hardware
Max Power Consumption 82W
Power Method Universal AC, 100–240V AC, 7A, 50/60 Hz
Power Supply (2) Hot-swappable 150W CRPS
Processor 18-core ARM v8.2 @ 2 GHz
Weight 6.5 kg (14.3 lb)
Enclosure Aluminium CNC, SGCC Steel
LCM Display 1.3" Touchscreen
LEDs Ethernet, SFP+
Reset Button (1) Factory Reset
ESD Protection ±8kV air, ±4kV contact
Operating Temp 0 to 40°C (32 to 104°F)
Humidity 5 to 95% (non-condensing)
NDAA Compliant Yes
Certifications CE, FCC, IC, Anatel

Software
UniFi iOS App Version 10.16.2 or later
UniFi Android App Version 10.17.2 or later
