(1) GbE LAN port that provides up to 15W of PoE
5 GHz band with up to 867 Mbps throughput rate

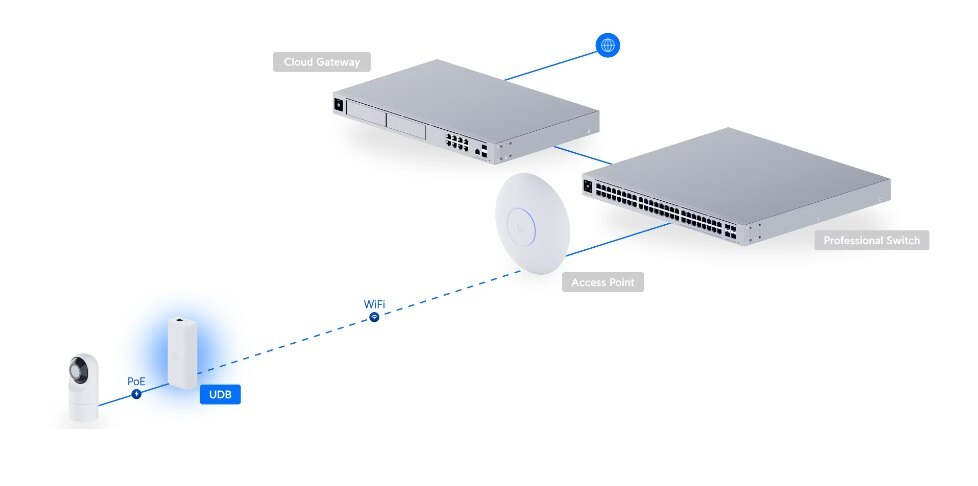

Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection
Note. UniFi Consoles and APs must have the latest software updates installed.
| Overview | |
| Dimensions | Ø189.5 x 64.3 mm (Ø7.4 x 2.5") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Wall, pole |
| Mounting | Pole (Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE, PoE+ (Required for PoE output) |
| Power Supply | 48V, 0.32A PoE adapter (Included) |
| Performance | |
| MIMO | |
| 5 GHz | 2 x 2 |
| Max. Data Rate | |
| 5 GHz | 867 Mbps (BW80) |
| Antenna Gain | |
| 5 GHz | 19 dBi |
| Max. TX Power | |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates | |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Antennas | Internal |
| Management | |
| Management Options | (1) PoE in (PoE output not used), (1) Passive PoE output |
| Channel Bandwidth | 20/40/80 (MHz) |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight | Device: 431 g (0.95 lb); With mount: 515 g (1.1 lb) |
| Enclosure Material | UV-resistant polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.8–2.1" (20–53.1 mm) |
| Button | (1) Factory-reset |
| LEDs | Power, (2) Ethernet status, (4) signal strength |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Operating Frequency | |
| US/CA | U-NII-1 5150–5250 MHz U-NII-2A 5250–5350 MHz U-NII-2C 5470–5725 MHz U-NII-3 5725–5850 MHz |
| Worldwide | 5150–5875 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
