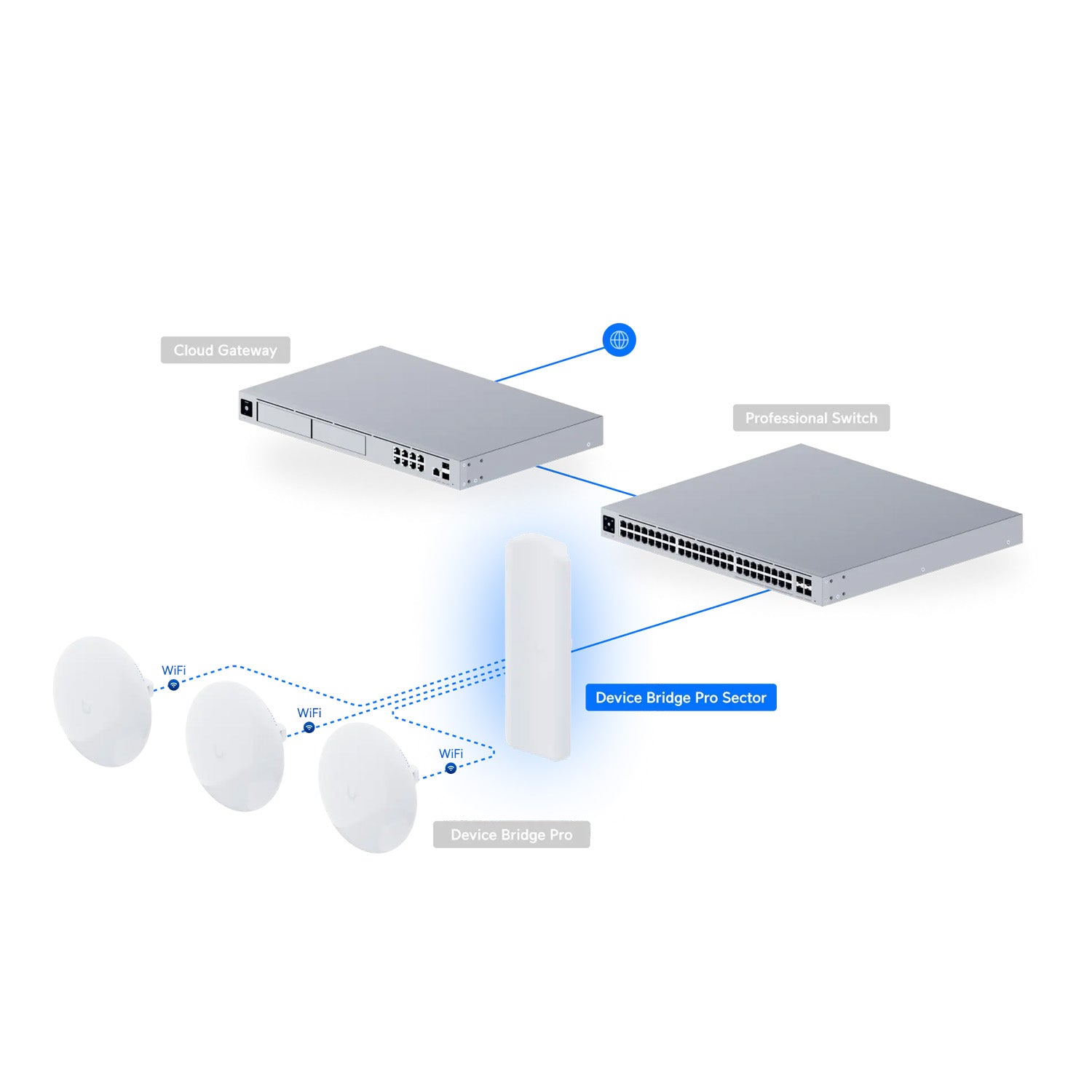

Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
(2) GbE ports with (1) PoE output for PoE devices
Powered using PoE/PoE+*

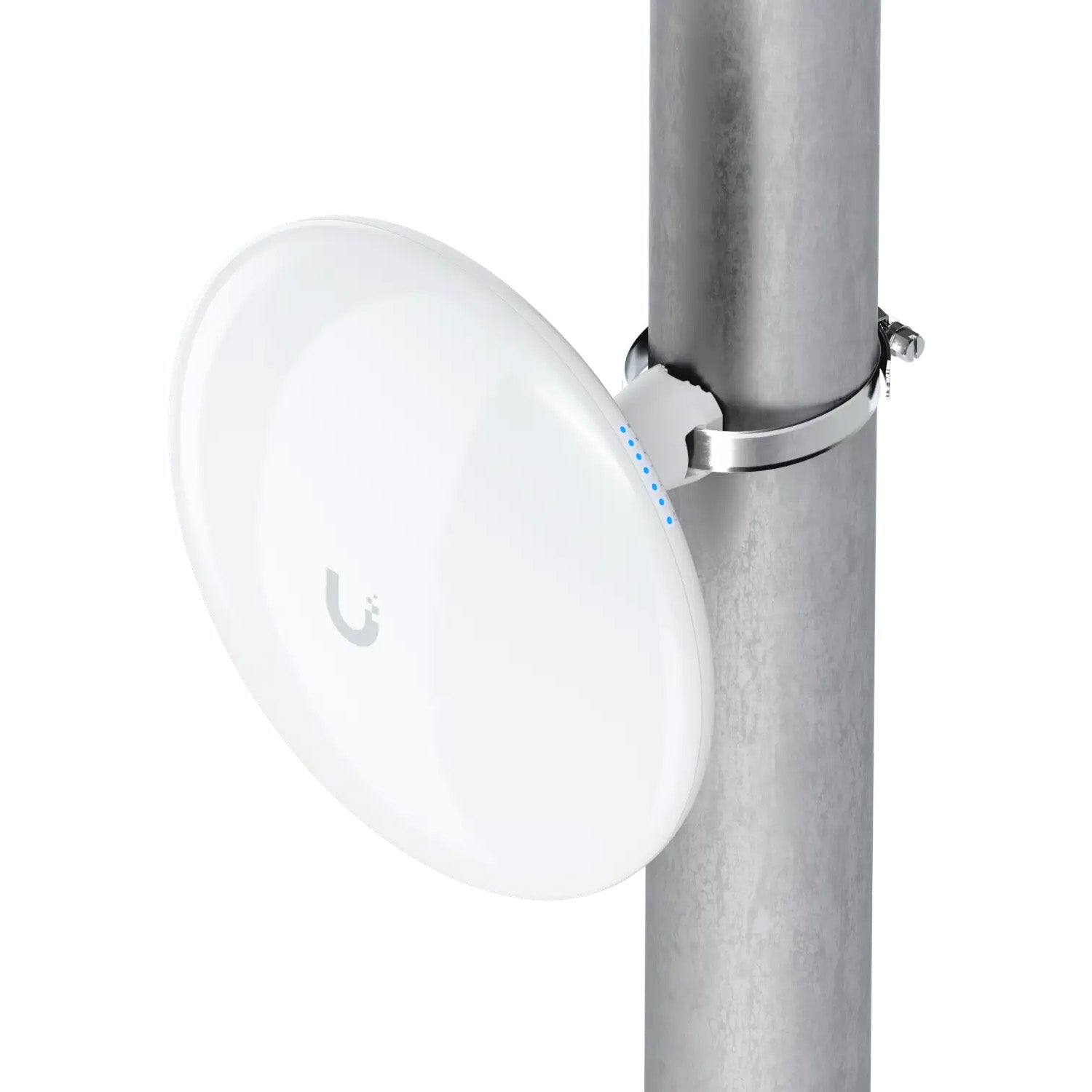

Pole mounting
Weatherproof (outdoor exposed)
Sold as a single unit
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
*PoE adapter included. PoE+ input required for PoE passthrough.
| Overview | |
| Dimensions | Ć189.5 x 64.3 mm (Ć7.4 x 2.5") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Wall, pole |
| Mounting | Pole (Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE, PoE+ (Required for PoE output) |
| Power Supply | 48V, 0.32A PoE adapter (Included) |
| Performance | |
| MIMO | |
| 5 GHz | 2 x 2 |
| Max. Data Rate | |
| 5 GHz | 867 Mbps (BW80) |
| Antenna Gain | |
| 5 GHz | 19 dBi |
| Max. TX Power | |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates | |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5ā57V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Antennas | Internal |
| Management | |
| Management Options | (1) PoE in (PoE output not used), (1) Passive PoE output |
| Channel Bandwidth | 20/40/80 (MHz) |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight | Device: 431 g (0.95 lb); With mount: 515 g (1.1 lb) |
| Enclosure Material | UV-resistant polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.8ā2.1" (20ā53.1 mm) |
| Button | (1) Factory-reset |
| LEDs | Power, (2) Ethernet status (main port / PoE out), (4) signal strength |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Operating Frequency | |
| US/CA | U-NII-1 5150ā5250 MHz U-NII-2A 5250ā5350 MHz U-NII-2C 5470ā5725 MHz U-NII-3 5725ā5850 MHz |
| Worldwide | 5150ā5875 MHz |
| Ambient Operating Temperature | -40 to 60Ā° C (-40 to 140Ā° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
