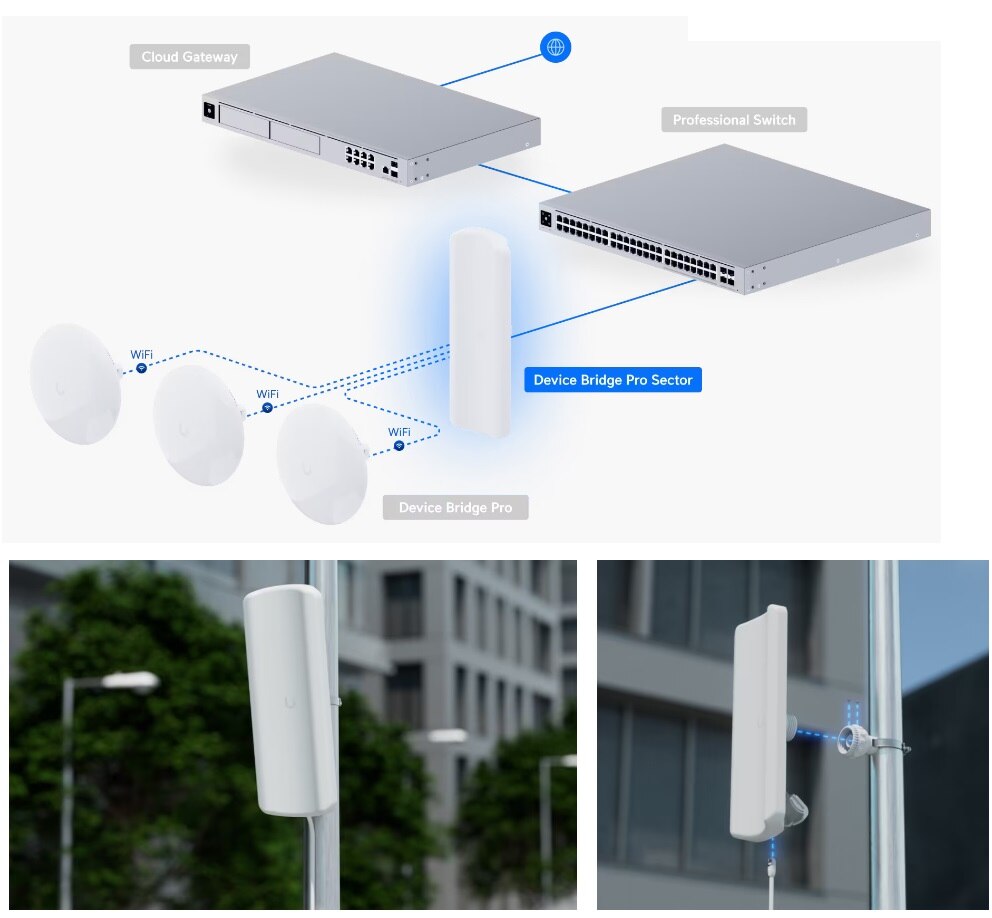

Enables Point-to-Multi-Point (PtMP connectivity) with 50+ UDB-Pro clients
90° sector coverage
Powered using PoE
Pole mounting
Weatherproof (outdoor exposed)
| Overview | |
| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Performance | |
| MIMO | |
| 5 GHz | 2 x 2 |
| Max. Data Rate | |
| 5 GHz | 400 Mbps (BW40) |
| Antenna Gain | |
| 5 GHz | 17 dBi |
| Max. TX Power | |
| 5 GHz | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates | |
| 802.11ac (WiFi 5) | 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Antennas | Internal |
| Management | |
| Management | Ethernet, WiFi |
| Channel Bandwidth | 20/40 MHz |
| Wind Loading | 128.2N at 200 km/h |
| Weight | Device: 782 g (1.7 lb); With mount: 835 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 0.9—2.4" (24—60 mm) |
| Button | (1) Factory-reset |
| LEDs | System: Power, Ethernet |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 05978-25-08356 |
| Operating Frequency | |
| US/CA | U-NII-1 5150–5250 MHz U-NII-2A 5250–5350 MHz U-NII-2C 5470–5725 MHz U-NII-3 5725–5850 MHz |
| Worldwide | 5150–5875 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
