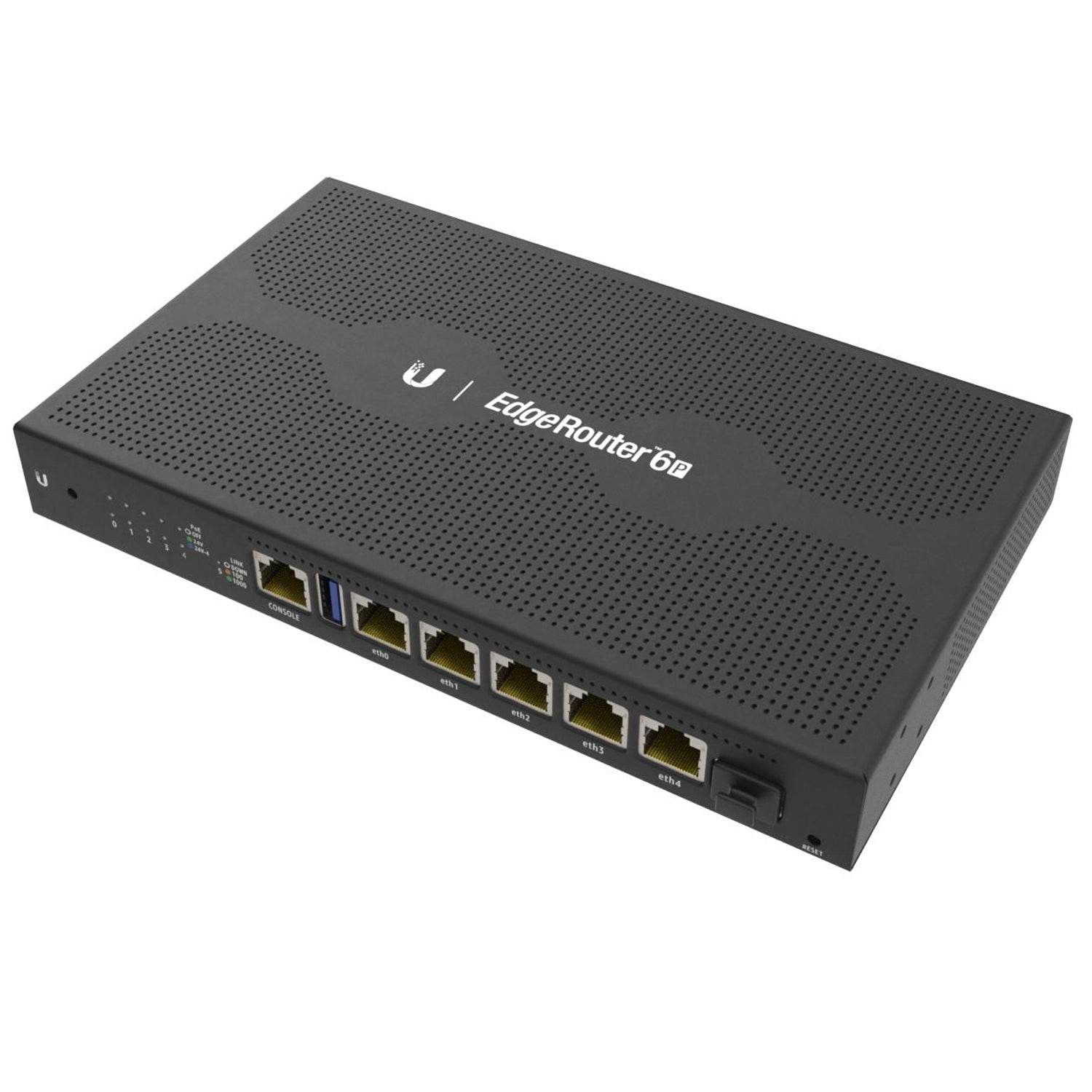

The Ubiquiti EdgeRouter ER-6P is a router that combines carrier-class reliability with enterprise-level features in a compact and affordable unit. The EdgeRouter 6P offers Gigabit Ethernet ports and an SFP port for a fiber link. The EdgeRouter 6P also offers five configurable PoE ports to power airMAX® products. The ER-6P has the capability of routing up to 3.4 million packets per second and has a line rate of 6 Gbps.
Fanless router with a four-core, 1 GHz MIPS64 processor, (5) Gigabit RJ45 ports, and an SFP port.
(5) GbE RJ45 ports with 24V passive PoE
(1) SFP port
Fanless, thermal cooling
Desk, wall, and rack-mountable*
*Rack-mount sold separately.
Technical Specifications:
|
|
MECHNICAL |
|
Dimensions |
229 x 136.5 x 31.1 mm (9 x 5.4 x 1.2") |
|
Weight |
730 g (1.6 lb) |
|
Enclosure material |
Metal housing with black powder coat |
|
|
HARDWARE |
|
Processor |
4-core 1 GHz MIPS64 |
|
Memory |
1GB DDR3 RAM |
|
On-board flash storage |
4GB eMMC, 8MB SPI NOR |
|
Networking interface |
(5) 10/100/1000 RJ45 ports |
|
Management interface |
(1) RJ45 serial port |
|
PoE interfaces |
(5) 24V Passive PoE ports (2-pair and 4-pair) |
|
Power method |
External AC/DC power adapter, 60W, 24V, 2.5A (Included) |
|
Power Supply |
External AC/DC adapter |
|
Supported voltage range |
16-30V DC |
|
Max. power consumption |
16W (Excluding PoE output) |
|
Passive PoE Max. wattage per port |
24W (24V, 1A, 4-pair) 12W (24V, 0.5A, 2-pair) |
|
Button |
Factory reset |
|
LEDs |
Data ports: link/speed/activity, PoE |
|
Mounting |
Wall, rack* |
|
Ambient operating temperature |
-10 to 50° C (14 to 122° F) |
|
Ambient operating humidity |
5 to 90% noncondensing |
|
Certifications |
CE, FCC, IC |
