The airMAX PrismStation Horn 5 90°, cataloged under the model manufacture part number Horn-5-90, is a pivotal innovation in Ubiquiti Networks' comprehensive portfolio of wireless network solutions, specifically engineered to augment the capabilities of the PrismStation series. This device is tailored for optimal performance in complex and densely populated radio frequency environments, delivering highly efficient and targeted wireless communication. Operating within the 5 GHz frequency spectrum, the Horn-5-90 is designed to provide expansive coverage with precise directivity, ensuring robust point-to-point (PtP) and point-to-multipoint (PtMP) connectivity.

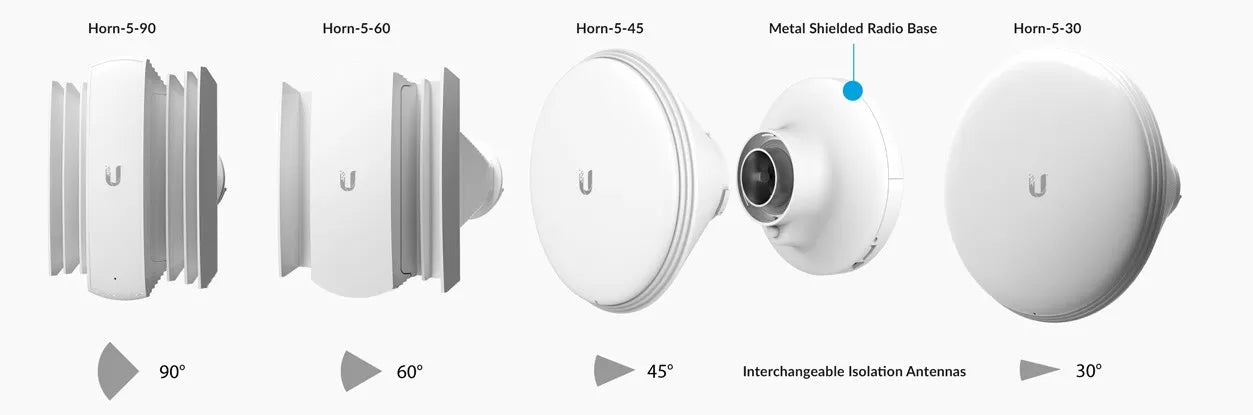

5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.
Improved beam shaping
Enhanced co-location performance
Single button release for ease of changing antennas
Compatible with airMAX radios
Technical Specifications:
|
|
HORN-5-90 |
|
Dimensions |
152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46") |
|
Weight |
920 g (2 lb) |
|
Frequency Range |
5.15 - 5.85 GHz |
|
Gain |
13 dBi |
|
HPOL Beamwidth |
90° |
|
VPOL Beamwidth |
90° |
|
Elevation Beamwidth |
45° |
|
Max. VSWR |
2:1 |
|
Wind Loading |
46 N @ 200 km/h (10.3 lbf @ 125 mph) |
|
Wind Survivability |
200 km/h (125 mph) |
|
Polarization |
Dual-Linear |
|
Cross-pol Isolation |
17 dB |
