WiFi 5
8 spatial streams
140 m² (1,500 ft²) coverage
1,500+ connected devices
Powered using PoE++*
(1) GbE and (1) 10 GbE uplink
*PoE power adapter included with single unit purchases.
| Overview | |
|---|---|
| Dimensions |
Ø228 x 50 mm (Ø9 x 2") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 8 |
| Coverage Area | 140 m² (1,500 ft²) |
| Mounting |
Ceiling, Wall (Pro Mount Included) |
| Power Method | Gigabit PoE++ Adapter, 50V DC, 1.2A |
| Performance | |
| MIMO |
5 GHz: 4 x 4 2.4 GHz: 4 x 4 |
| Max. Data Rate |
5 GHz: 1733 Mbps 2.4 GHz: 800 Mbps |
| Antenna Gain |
5 GHz: 8 dBi 2.4 GHz: 6 dBi |
| Max. TX Power |
5 GHz: 25 dBm 2.4 GHz: 25 dBm |
| Max. BSSIDs | Up to 8 per radio |
| Supported Data Rates |
802.11ac (WiFi 5) 6.5 Mbps – 1.7 Gbps (VHT 20/40/80) 58 Mbps – 1.7 Gbps (VHT 160) 802.11n 6.5 Mbps – 450 Mbps (HT 20/40) |
| Hardware | |
| Max. Power Consumption | 31W |
| Networking Interface |
(1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port |
| Weight |
Without mount: 1.2 kg (2.7 lb) With mount: 1.4 kg (3 lb) |
| LEDs | R/G/B |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 00569-19-08356 |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operating Humidity | 5% to 95% noncondensing |
| Software | |
| Application Requirements |
UniFi Network Version 6.0.45 and later |
| Compliance | |
| United States (US) | Active |
| Canada (CA) | Active |
| European Union (EU) | Active |
| United Kingdom (UK) | Active |
| Australia (AU) | Active |
| East African Community (EAC) | Active |
![[UVC-G4-PRO] Ubiquiti UniFi Protect G4-PRO Camera - Daanish Technologies](http://store.daanish.com/cdn/shop/files/de360858-446d-4e5d-9d4a-d570a4e8f4b3_1170x.png?v=1756721212)
![[UVC-G4-PTZ] Ubiquiti Networks UniFi 4K UHD Outdoor Network PTZ Camera - Daanish Technologies](http://store.daanish.com/cdn/shop/files/3003f15e-09fe-4769-bfa7-4bd29dc7f5c0_1170x.png?v=1756721212)
![[UVC-AI-360] Ubiquiti UniFi Indoor/outdoor HD PoE AI 360 Camera - Daanish Technologies](http://store.daanish.com/cdn/shop/files/download-6_1370x.png?v=1756721154)

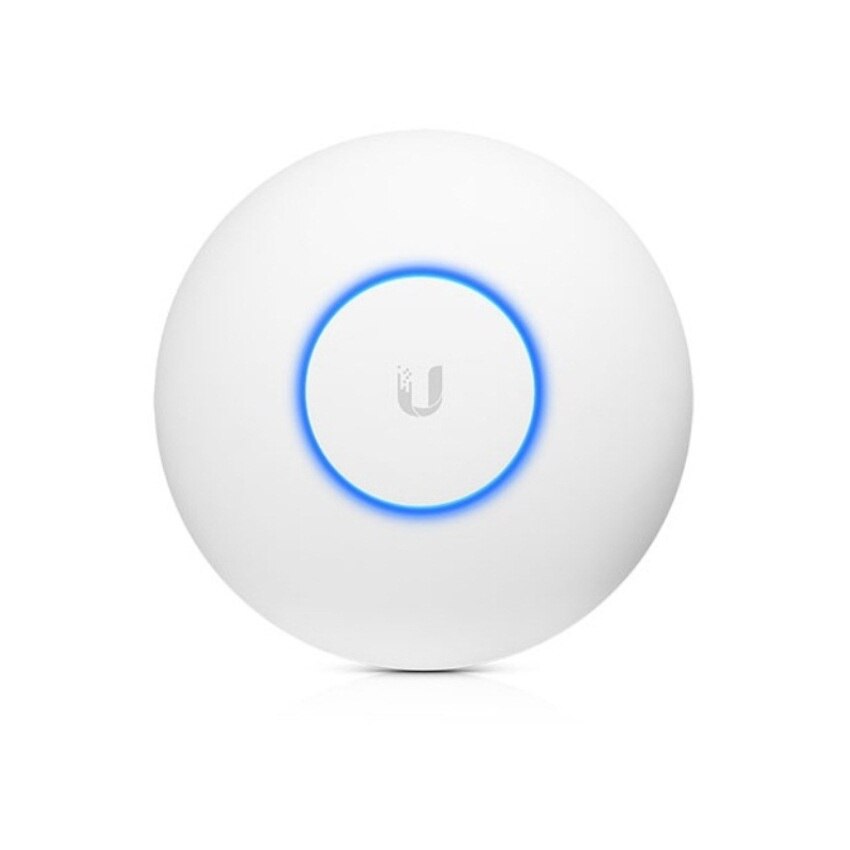

![[UAP-XG] Ubiquiti UAP-XG UniFi WiFi 5 Access Point (4.2Gbps AC)](http://store.daanish.com/cdn/shop/files/Ubiquiti-UAP-XG-US.001_large.jpg?v=1764757128 "[UAP-XG] Ubiquiti UAP-XG UniFi WiFi 5 Access Point (4.2Gbps AC)")
