WiFi 7 with 6 GHz support
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
10 GbE uplink
| Overview | |
|---|---|

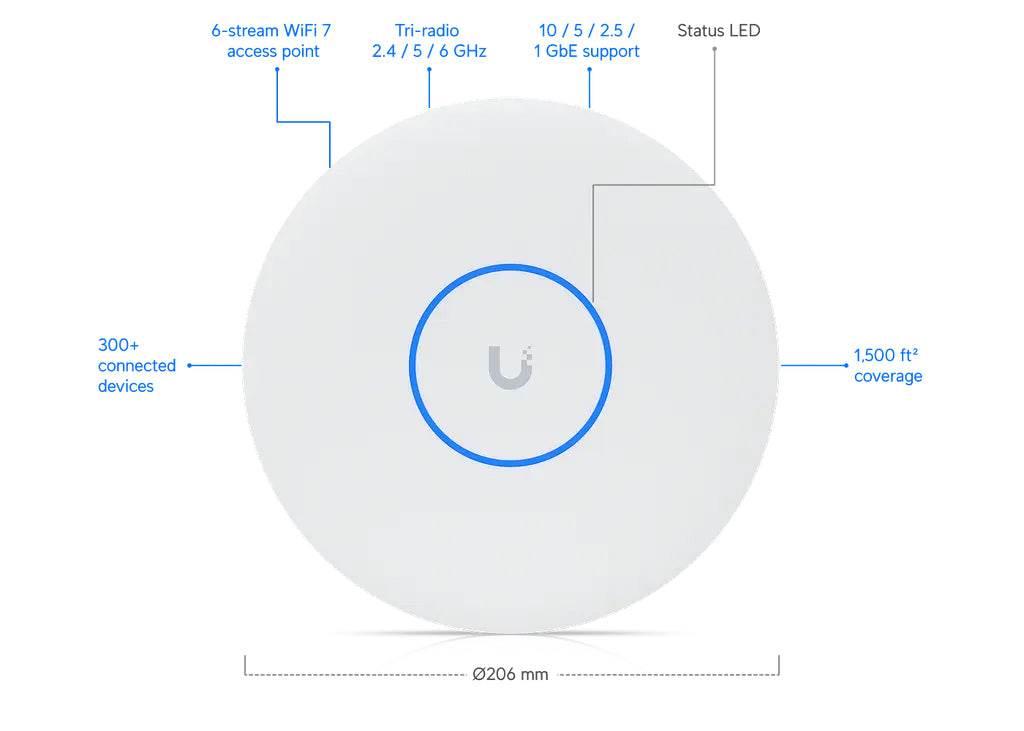

| Dimensions | Ø206 x 32.5 mm (Ø8.1 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |

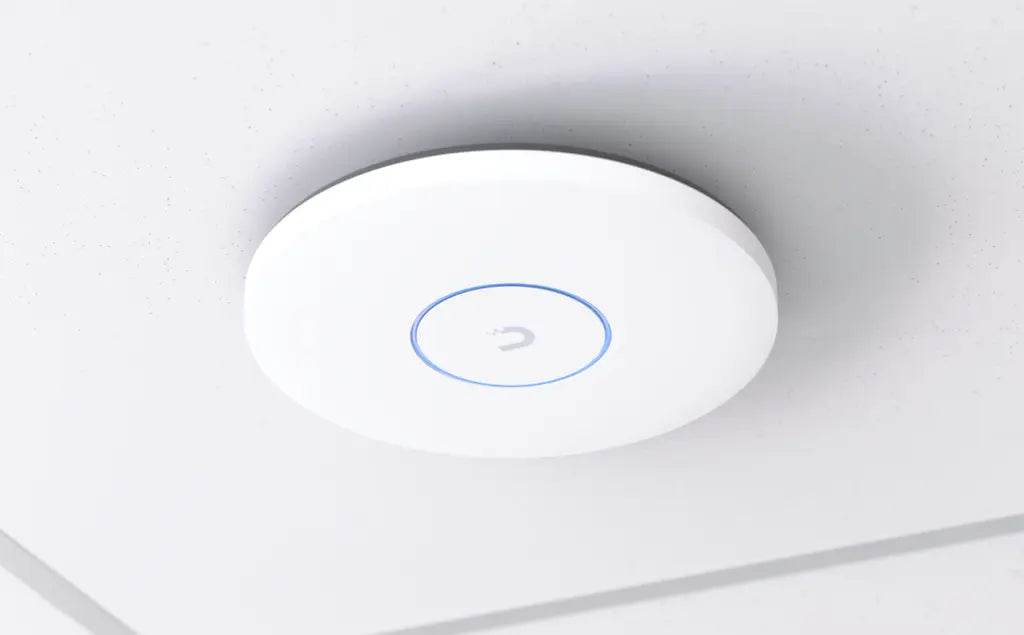

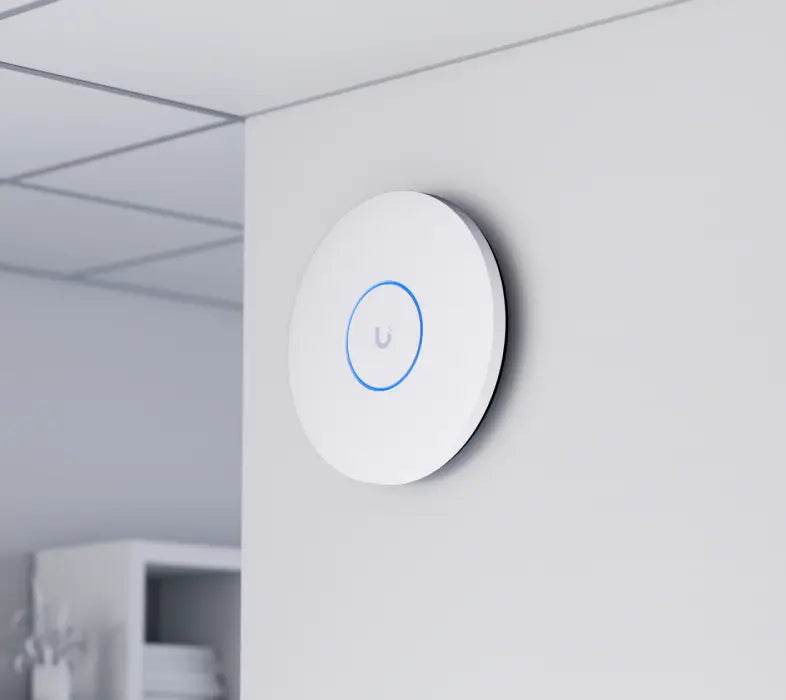

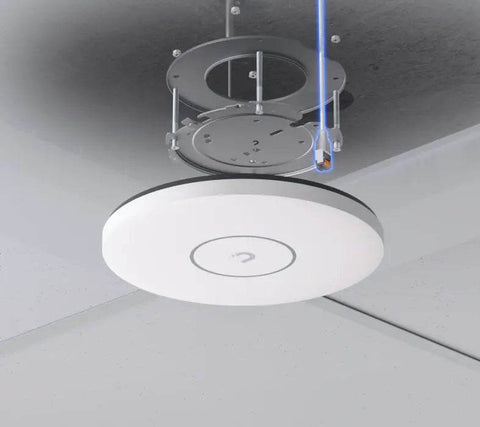

| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO | |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain | |
| 6 GHz | 6 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| Max. TX Power | |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps – 5.8 Gbps 5 GHz: 7.3 Mbps – 4.3 Gbps |
| 802.11ax (WiFi 6) | 7.3 Mbps – 2.4 Gbps |
| 802.11ac (WiFi 5) | 6.5 Mbps – 1.7 Gbps |
| 802.11n | 6.5 Mbps – 300 Mbps |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v | Yes |
| 802.11r | Yes |
| 802.11k | Yes |
| Advanced Radio Management | Yes |
| Captive Hotspot Portal | |
| Custom Branding | Yes |
| Voucher Authentication | Yes |
| Payment Authentication | Yes |
| External Portal Support | Yes |
| Hardware | |
| Max. Power Consumption | 22W |
| Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 |
| Weight | 750 g (1.7 lb) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel, galvanized steel |
| LEDs | White / Blue |
| Operating Frequency |
US/CA: 2400–2472 MHz, 5150–5250 MHz, 5250–5350 MHz, 5470–5725 MHz, 5725–5850 MHz, 5925–7125 MHz Worldwide: 2400–2483.5 MHz, 5150–5725 MHz, 5925–7125 MHz |
| Operating Temperature | -30 to 40°C (-22 to 104°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network 9.0.114+ (White), 9.1.120+ (Black) |
| Compliance | |
| Countries | US, CA, EU, UK, BR, AU, JP, PH, SG, TW, UAE — Active |
