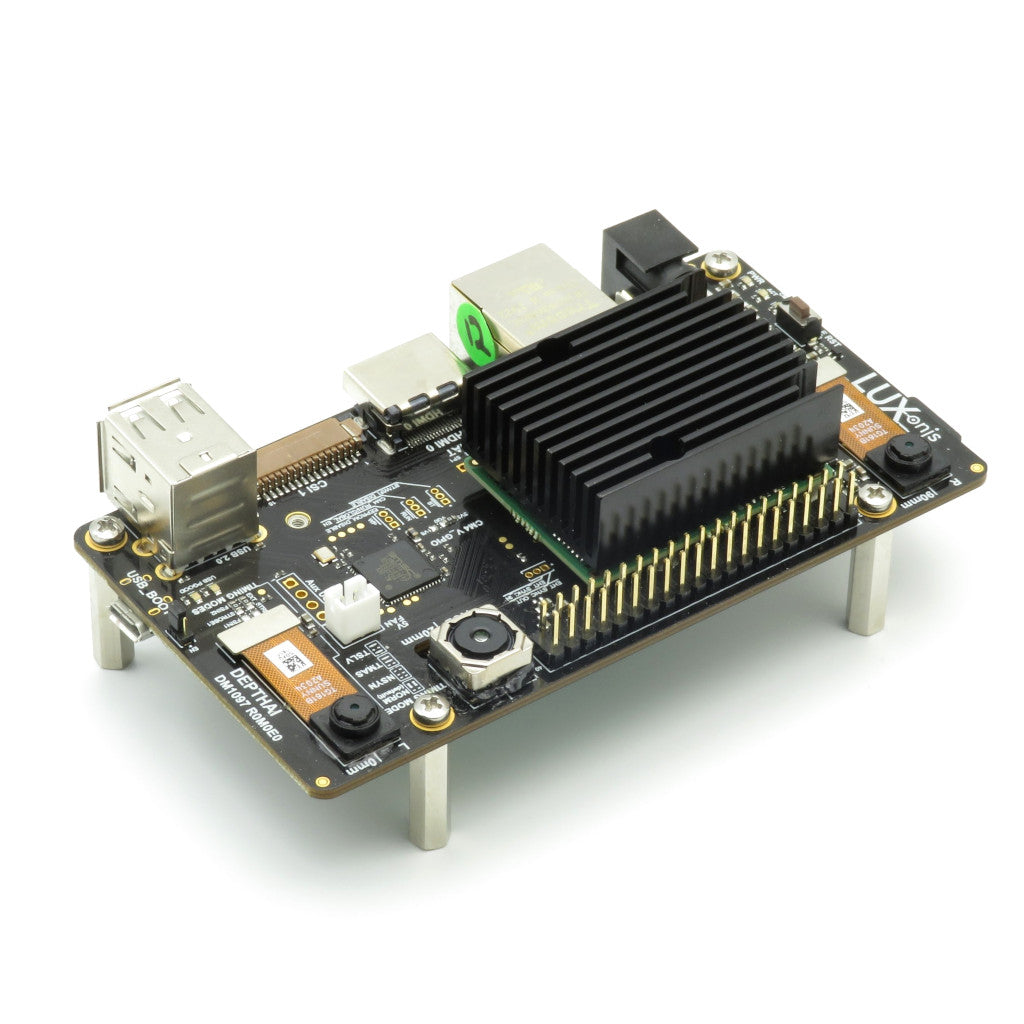

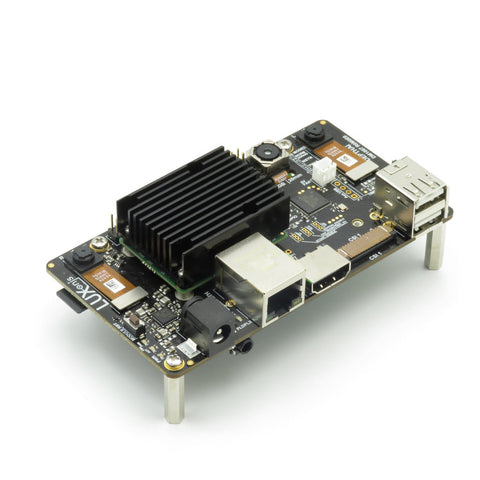

The OAK-D CM4 integrates the Raspberry Pi Compute Module 4 (Wireless, 4GB RAM, PN: CM4004032) and all of its interfaces (USB, Ethernet, 3.5mm Audio, etc.) and has an onboard 32GB eMMC storage flashed with Raspberry Pi OS and DepthAI Python interface.
Just connect to power and an HDMI display to unleash the full 4-trillion-operations-per-second power of the Myriad X in the way it was designed to be used.
Main Features
This OAK device is built on top of the RVC2. Main features:
-
4 TOPS of processing power (1.4 TOPS for AI)
-
Run any AI model, even custom architectured/built ones
-
Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
-
Computer vision: warp/dewarp, resize, crop via ImageManip node, edge detection, feature tracking.
-
Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
-
Object tracking: 2D and 3D tracking
- Dimension: 110x60x27mm
- Weight: 106g
Documentation:
Package includes:
- OAK-D CM4 board
- Power supply with international adapters
