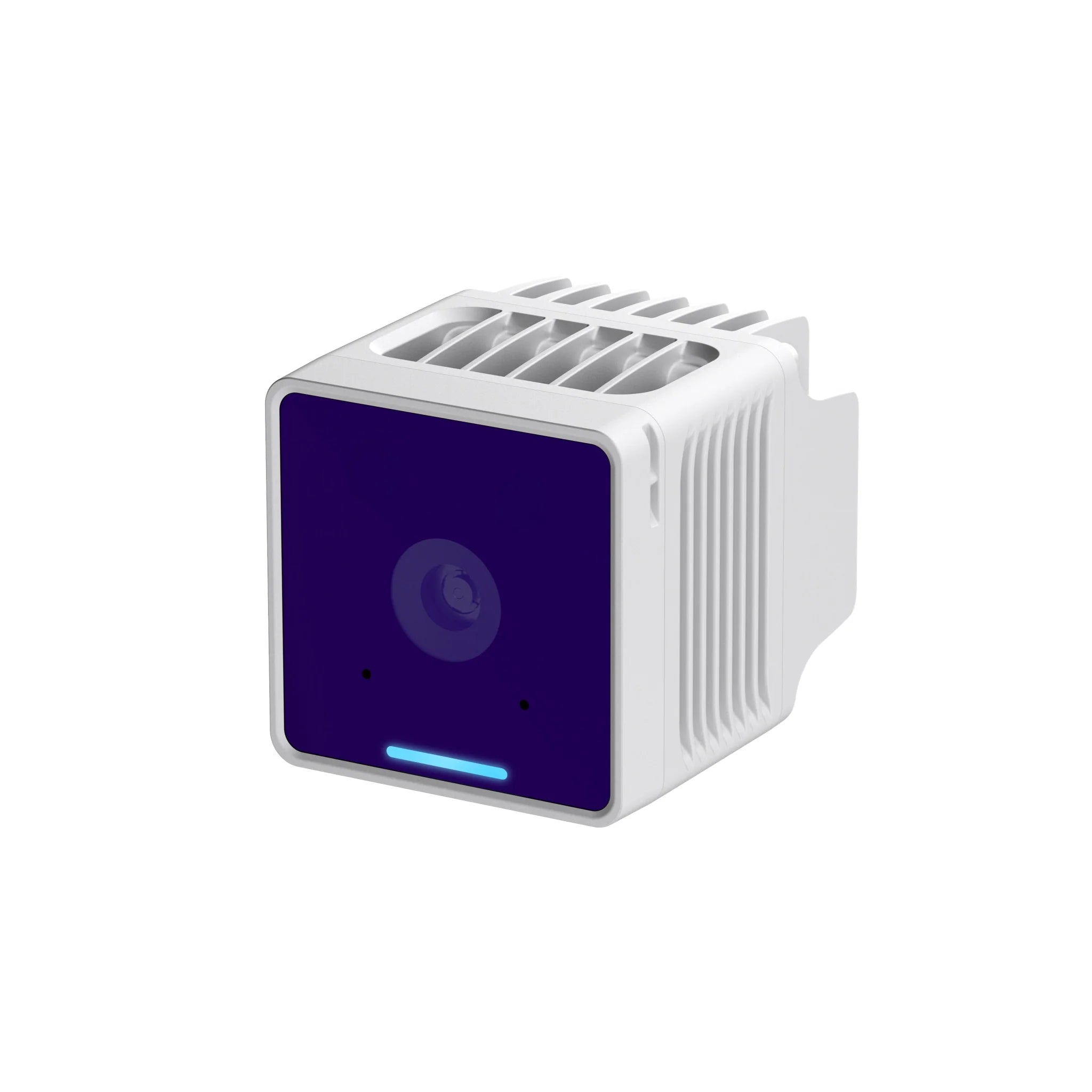

OAK 4 S

OAK 4 S is our single lens solution for high-speed edge inference in a tiny package.  A true standalone device running Luxonis OS, the OAK 4 S combines an elegant design, industrial grade materials, and industry leading compute in a single, compact unit.

• 8-core CPU, 8GB RAM, 128GB of storage
• 48 TOPS for AI inferencing
• 48MP RGB camera
• Microphone
• Both USB3 and PoE for power and communication
• Status LED
• IP67 Rating
• Running Linux based Luxonis OS
• 9-axis IMU

Key features:

RVC4 on-board features:

• 8-core ARM CPU (QC Snapdragon 8-series), 8GB RAM, 128GB of storage
• Operated by Luxonis OS, based on Linux kernel 5.15
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• AI: 48 TOPS (INT8) and 12 TOPS (FP16) operations
• Object tracking: 2D tracking with ObjectTracker node

Specifications:

• Power consumption: up to 25W
• Housing:
  - Industrial grade aluminum with Front Gorilla Glass
  - Water resistance enclosure with IP67 rating

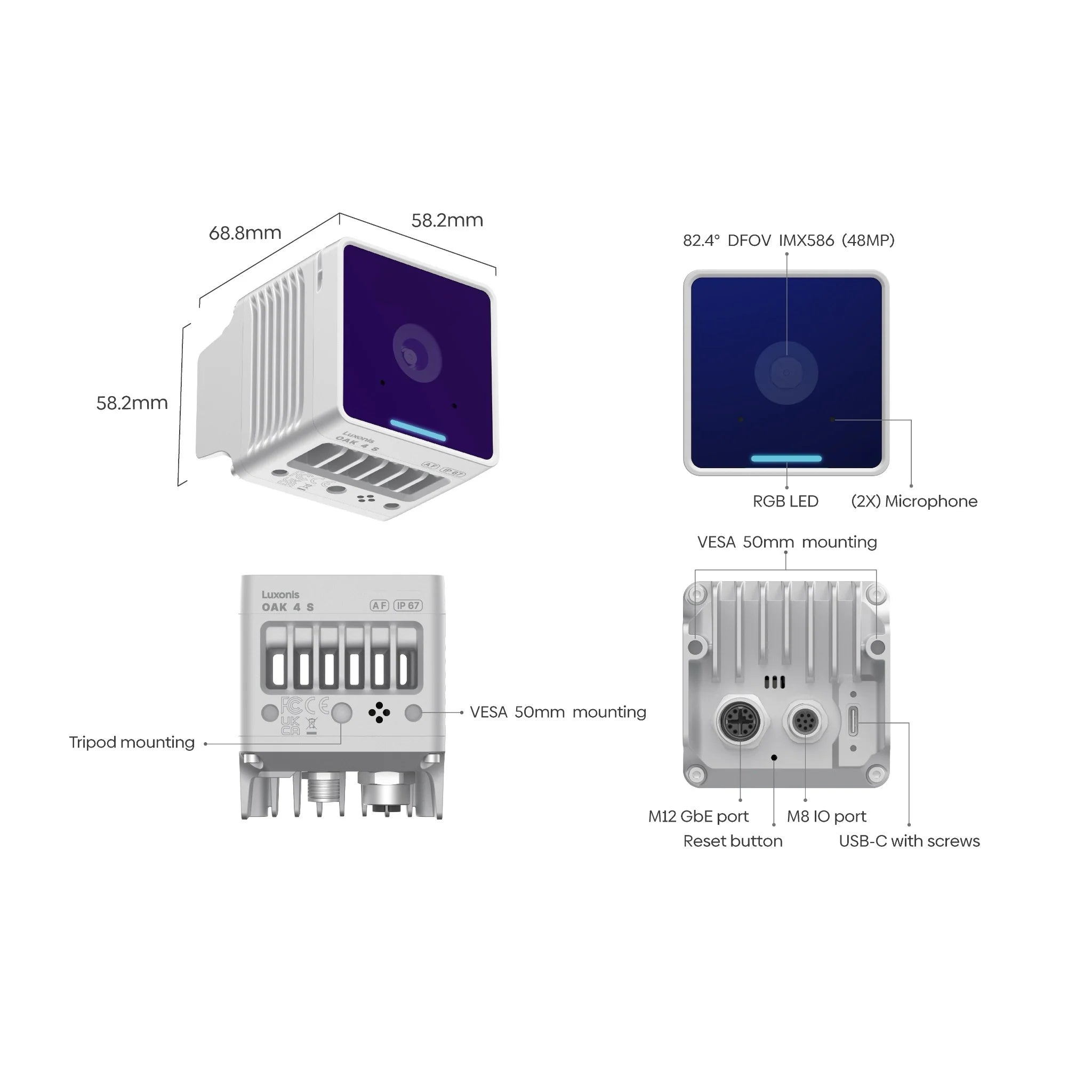

• Mounts:
  - 1/4" tripod mount
  - M4 mounting points at distance 40mm on back and bottom cover

• Dimensions: 58 x 58 x 71 mm
• Weight:
  - 325 g

Package includes:

• OAK 4 S
• M12 plug to RJ45 cable, 2m
